Galvanized Carbon Steel Press Fittings - Straight adapter female x Ø

Female adapters with plain end

Fob reference price: Click here to get latest price from our service girl now!

FCA: EURO11.24-59.85/pcs,  Min. order: 200pcs female adapter with plain end, Supply ability: 10000pieces per month

Contact us! Start order! Chat Now!

Shipping: LCL/FCL by sea, by air, DHL, TNT, FEDEX;

Price term: EXW, FCA, FOB, CNF, CIF, DDP, AS CUSTOMERS REQUIRE;

Payment: TT, LC, VISA, MASTERCARD, WESTERN UNION.

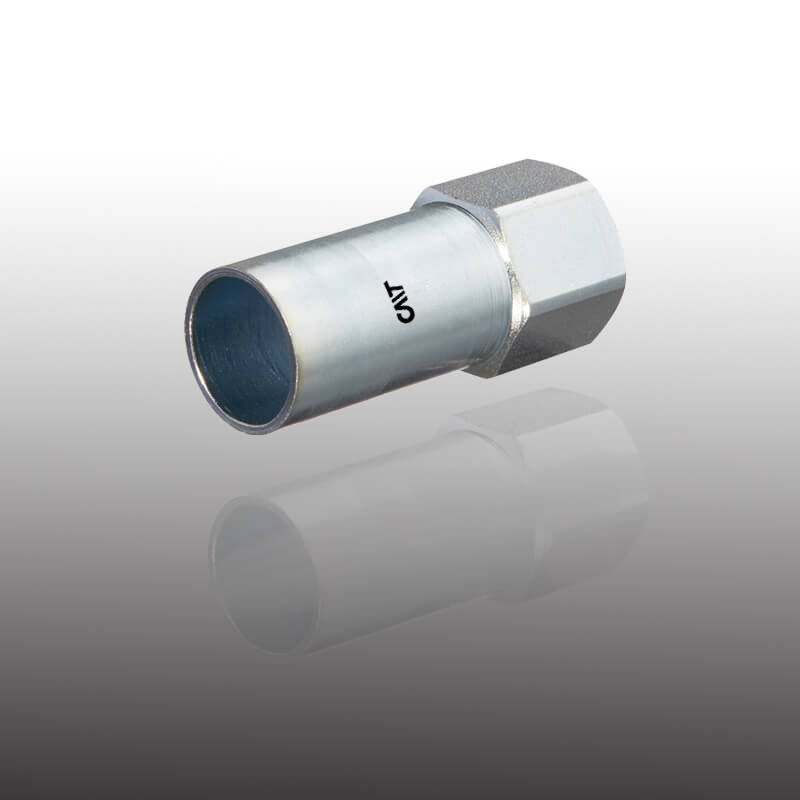

Female adapter with Plain End

Article no.	Size	S	FCA Ningbo	W	Bag	Box
		〔mm〕		g	pcs	pcs
P1227001	15xRp1/2	1.5	€11.24	69	10	50
P1227002	15xRp3/4	1.5	€14.67	70	10	50
P1227003	18×Rp1/2	1.5	€15.68	68	10	50
P1227004	18×Rp3/4	1.5	€16.66	72	10	50
P1227005	22×Rp3/4	1.5	€18.56	80	10	50
P1227006	22×Rp1	1.5	€19.65	103	10	50
P1227007	28xRp1	1.5	€24.69	156	4	40
P1227008	35×Rp1 1/4	1.5	€28.92	194	4	24
P1227009	42×Rp1 1/2	1.5	€35.20	234	4	20
P1227010	54×Rp11/2	1.5	€56.28	405	4	12
P1227011	54xRp2	1.5	€59.85	420	4	12

Our galvanized press fitting pipeline is used for heating supply, chilled water, compressed air and fire sprinkler systems.

Low cost of labor

Security of hygiene

Reliability of the joints

Resistance to corrosion

Easy and quick way of laying

Compatible of press fitting system

Hydro thermo sanitary applications

Press fitting system made by best material

Jordith long-term experience in stainless pipeline industry



Other similar fittings:

Jordith not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test,

vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

1.Tightness of joints, internal pressure

2 assemblies of one size



2. Temperature cycling test

a. Sizes ≤63 outside diameter



For pipes with outside diameter ≤ 28 mm A is 555^±2 mm; For pipes with outside diameter > 28 mm A is 950^±2 mm; B is the length needed to bring the faces of the male thread couplers in line.

b.  Sizes > 63 mm outside diameter



A: 200 mm

3. Bending cycling



A is the length needed to bring the faces of the male thread couplers in line

The press fittings with O-ring may be used for class III piping systems:

Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5;

Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil;

Fresh water: cooling water system, drainage water system.

Jordith Press system-propress fitting: press galvanized carbon steel: design (compression couplings, press type): press galvanized steel tubes are thin-walled precision tubes.

The press fitting end is annularly shaped as “U” type groove bead with O ring sealing inside. When assembling, the pipes inserts into the fittings, then pressed by professional press tools,

to make the joint inside the “U” type groove reducing to final hexagon, resulting strong connecting strength, meanwhile achieving the sealing function by the deformation of the O ring.



Press Galvanized Steel Tube

It depends on sealing material according to manufacturer’s recommendation.

• EPDM black: -40/135 (150peak)
• NBR yellow: -30/100 (125peak)
• Viton Green: 20/200 (230 peak)
•

We Jordith not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test, vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

The Jordith press fittings with O-ring may be used for class III piping systems: Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5; Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil; Fresh water: cooling water system, drainage water system.
