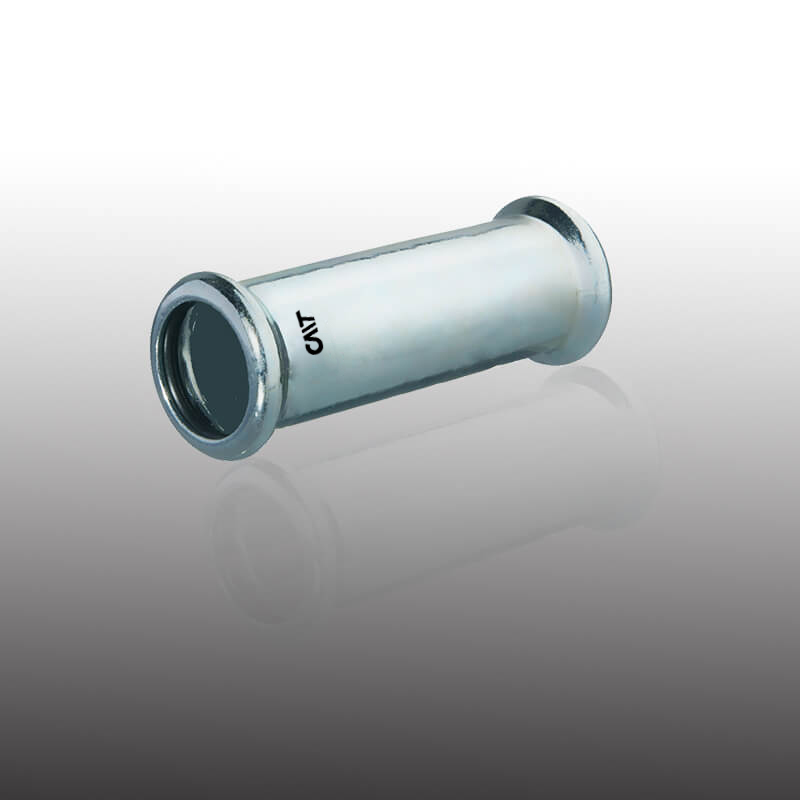

Galvanized Carbon Steel Press Fittings - Slip Coupling
Slip coupling press x press
Fob reference price: Get latest price from our service girl now!
FCA: EURO1.53-48.23/pcs
Min. order: 200pcs equal coupling
Supply ability: 10000pieces per month
Contact us! Start order! Chat Now!
Shipping: LCL/FCL by sea, by air, DHL, TNT, FEDEX.
Price term: EXW, FCA, FOB, CNF, CIF.
|
Article no. |
Size |
S |
FCA Ningbo |
W |
Bag |
Box |
|
〔mm〕 |
g |
pcs |
pcs |
|||
|
C1202001 |
15 |
1.5 |
€1.83 |
56 |
10 |
100 |
|
C1202002 |
18 |
1.5 |
€2.27 |
64 |
10 |
80 |
|
C1202003 |
22 |
1.5 |
€2.93 |
84 |
10 |
60 |
|
C1202004 |
28 |
1.5 |
€3.83 |
131 |
10 |
40 |
|
C1202005 |
35 |
1.5 |
€5.63 |
149 |
4 |
20 |
|
C1202006 |
42 |
1.5 |
€7.40 |
217 |
4 |
8 |
|
C1202007 |
54 |
1.5 |
€10.20 |
313 |
2 |
6 |
|
C1202008 |
76.1 |
2 |
€27.10 |
870 |
1 |
- |
|
C1202009 |
88.9 |
2 |
€36.57 |
1200 |
1 |
- |
|
C1202010 |
108 |
2 |
€53.83 |
1705 |
1 |
- |
Security of hygiene
Reliability of the joints
Resistance to corrosion
Easy and quick way of laying
Compatible of press fitting system
Hydro thermo sanitary applications
Press fitting system made by best material
Jordith long-term experience in stainless pipeline industry

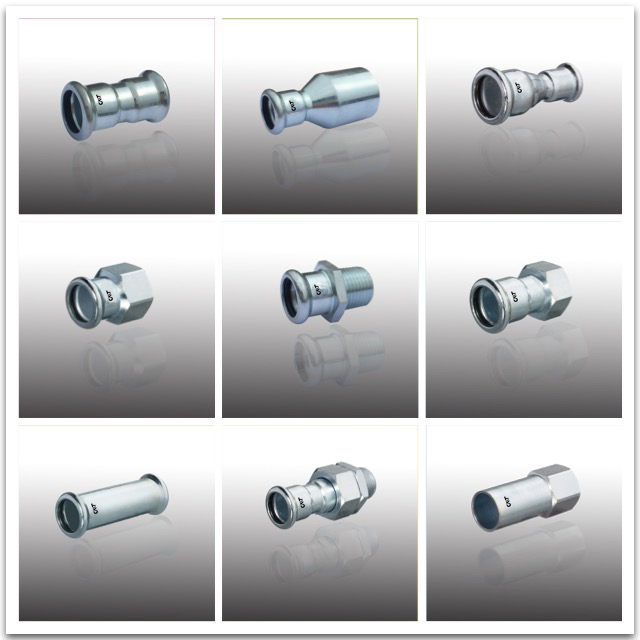

Other similar fittings:
We not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test, vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.
1.Tightness of joints, internal pressure
2 assemblies of one size
2. Temperature cycling test
a. Sizes ≤63 outside diameter
For pipes with outside diameter ≤ 28 mm A is 555±2 mm
For pipes with outside diameter > 28 mm A is 950±2 mm
B is the length needed to bring the faces of the male thread couplers in line
b. Sizes > 63 mm outside diameter
A: 200 mm
3. Bending cycling
A is the length needed to bring the faces of the male thread couplers in line
The press fittings with O-ring may be used for class III piping systems:
Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5;
Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil;
Fresh water: cooling water system, drainage water system.
