Shipping: LCL/FCL by sea, by air, DHL, TNT, FEDEX;

Price term: EXW, FCA, FOB, CNF, CIF, DDP, AS CUSTOMERS REQUIRE;

Payment: TT, LC, VISA, MASTERCARD, WESTERN UNION.

Size	S	FCA Ningbo	W	Bag	Box
	〔mm〕		g	pcs	pcs
15	1.5	€1.30	32	10	180
18	1.5	€1.43	38	10	150
22	1.5	€2.03	43	10	120
28	1.5	€2.37	60	10	80
35	1.5	€3.93	70	10	50
42	1.5	€5.00	108	4	24
54	1.5	€7.57	155	2	20
76.1	2	€19.67	210	2	12
88.9	2	€24.20	600	1	-
108	2	€37.00	1220	1	-

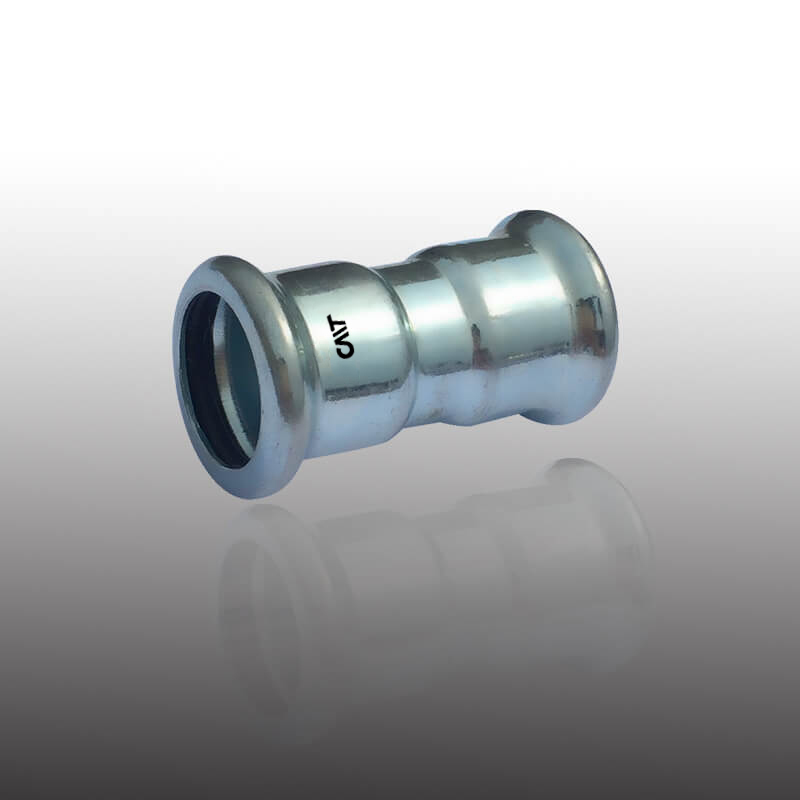

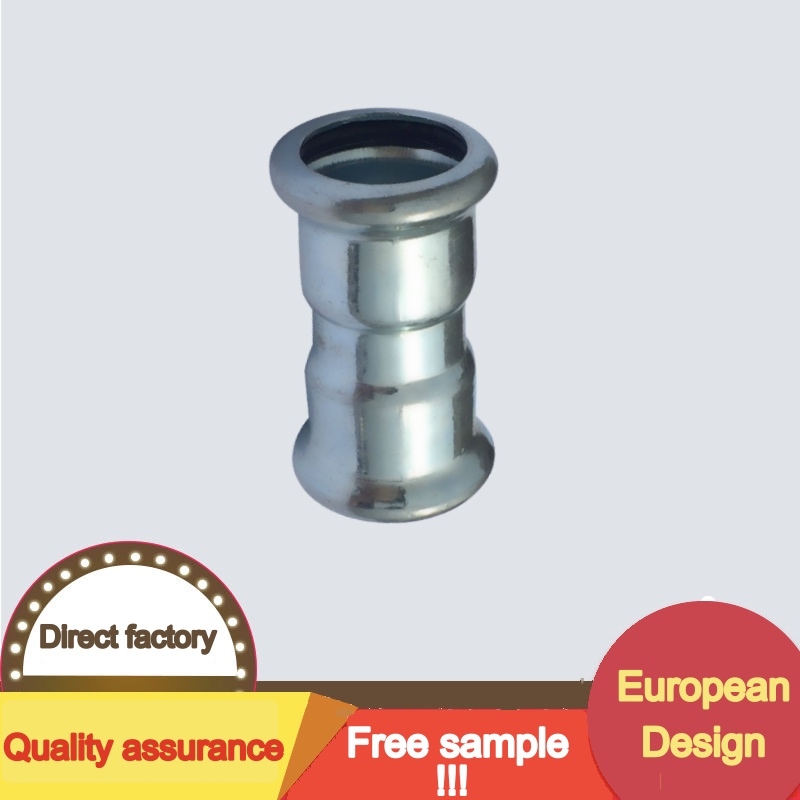

Our galvanized press fitting pipeline is used for heating supply, chilled water, compressed air and fire sprinkler systems.

Security of hygiene

Reliability of the joints

Resistance to corrosion

Easy and quick way of laying

Compatible of press fitting system

Hydro thermo sanitary applications

Press fitting system made by best material

Coweth long-term experience in stainless pipeline industry

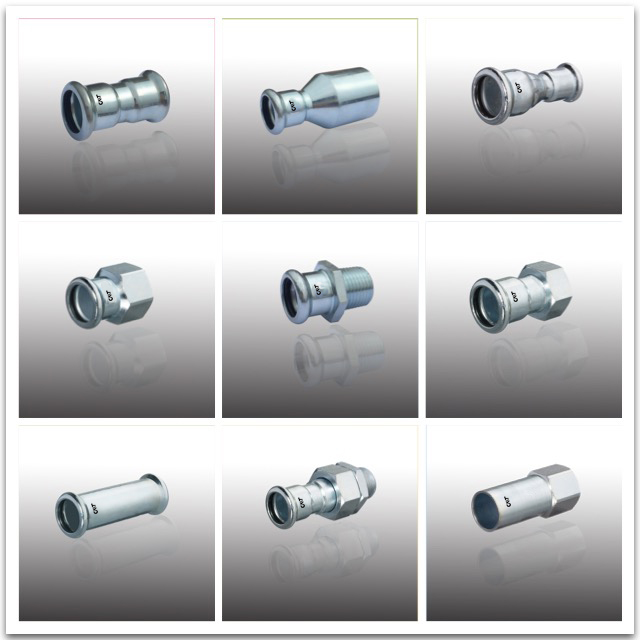

 Other similar fittings:





We not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test,

vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

1.Tightness of joints, internal pressure



2 assemblies of one size



2. Temperature cycling test

a. Sizes ≤63 outside diameter

For pipes with outside diameter ≤ 28 mm A is 555^±2 mm; For pipes with outside diameter > 28 mm A is 950^±2 mm; B is the length needed to bring the faces of the male thread couplers in line



b.  Sizes > 63 mm outside diameter



A: 200 mm



3. Bending cycling



A is the length needed to bring the faces of the male thread couplers in line

The press fittings with O-ring may be used for class III piping systems:

Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5;

Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil;

Fresh water: cooling water system, drainage water system.

Press system: press galvanized carbon steel: Design (compression couplings, press type): press galvanized steel tubes are thin-walled precision tubes.
