Bend 90° MF
  • Bend 90° MF
Up
Down

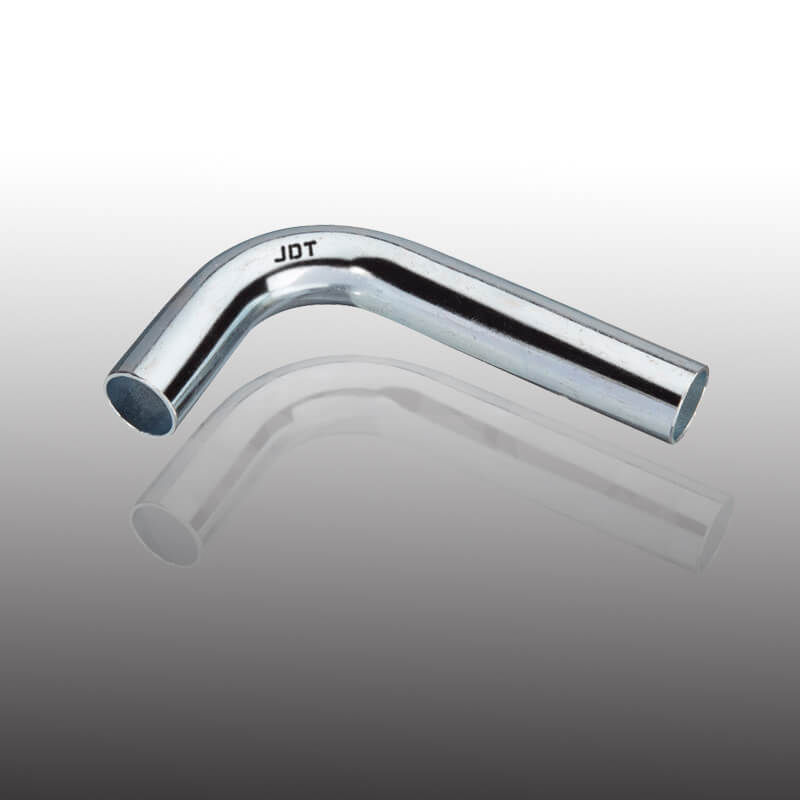

90degree Bend

  • Product description:

    Bend with Plain Ends 90°
  • Details
  • Description
  • Download

Galvanized Carbon Steel Press Fitting - Bend 90°Ø x Ø

BEND 90° WITH PLAIN ENDS

BEND 90° WITH PLAIN ENDS

Fob reference price: Click here to get latest price from our service girl now!

FCA: EURO11.24-59.85/pcs,  Min. order: 200pcs female adapter with plain end, Supply ability: 10000pieces per month

Contact us! Start order! Chat Now!

Shipping: LCL/FCL by sea, by air, DHL, TNT, FEDEX;

Price term: EXW, FCA, FOB, CNF, CIF, DDP, AS CUSTOMERS REQUIRE;

Payment: TT, LC, VISA, MASTERCARD, WESTERN UNION.



Bend 90°  MF - Bogen 90°IA - Coude MF 90° - Curva 90°MF - Curva 90° HM

Article no.

Size

S

FCA Ningbo

Bag

Box

mm

g

pcs

pcs

C1223001

15

1.5

€1.62

88

10

60

C1223002

18

1.5

€1.82

100

10

50

C1223003

22

1.5

€2.03

130

10

40

C1223004

28

1.5

€2.84

190

4

20

C1223005

35

1.5

€6.08

340

2

6

C1223006

42

1.5

€9.73

555

1

2

C1223007

54

1.5

€12.97

880

1

2


press system application
Our galvanized press fitting pipeline is used for heating supply, chilled water, compressed air and fire sprinkler systems.
press fitting advantage
Low cost of labor

Security of hygiene

Reliability of the joints

Resistance to corrosion

Easy and quick way of laying

Compatible of press fitting system

Hydro thermo sanitary applications

Press fitting system made by best material

Jordith long-term experience in stainless pipeline industry

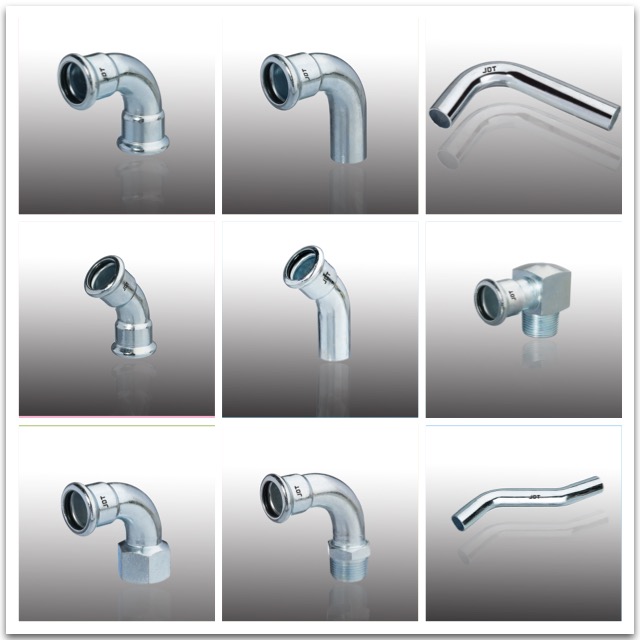

Other similar fittings:

press fitting quality control test dvgw w534

We not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test,

vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

1.Tightness of joints, internal pressure

2 assemblies of one size



2. Temperature cycling test

a. Sizes ≤63 outside diameter

                                          press fitting temperature recycle

For pipes with outside diameter ≤ 28 mm A is 555±2 mm; For pipes with outside diameter > 28 mm A is 950±2 mm; B is the length needed to bring the faces of the male thread couplers in line.

b.  Sizes > 63 mm outside diameter

                                                 temperature cycling test bigger than 63 mm

A: 200 mm

3. Bending cycling



A is the length needed to bring the faces of the male thread couplers in line

The press fittings with O-ring may be used for class III piping systems:

Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5;

Flammable fluids ( flash point 60)Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil;

Fresh water: cooling water system, drainage water system.
