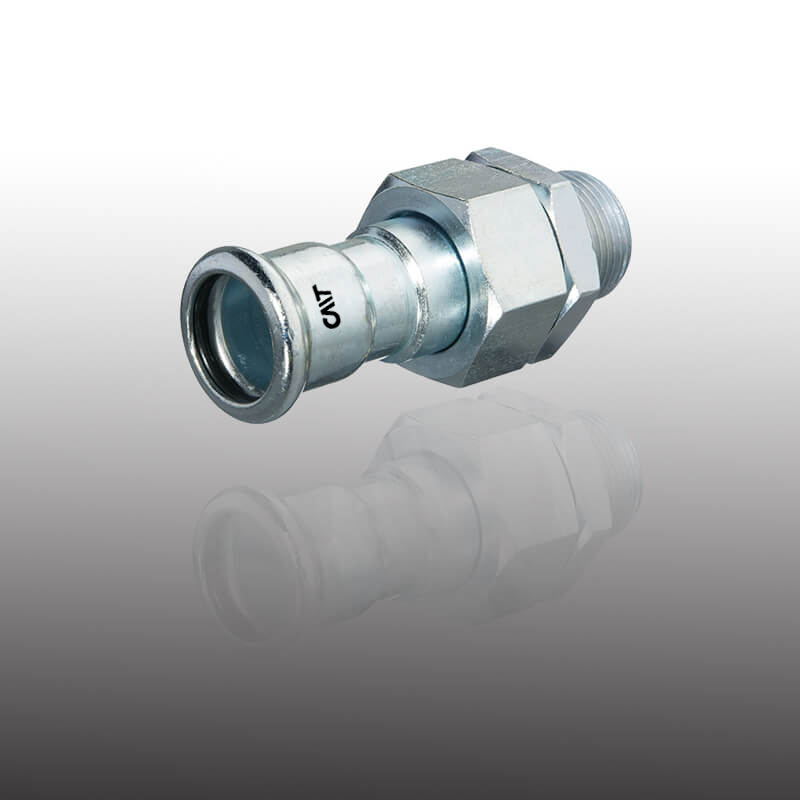

Galvanized Carbon Steel Press Fittings - adaptor union with female thread, nut and epdm flat seal

Adapter Union with Male Thread

Fob reference price: Click here to get latest price from our service girl now!

FCA: EURO11.24-59.85/pcs,  Min. order: 200pcs female adapter with plain end, Supply ability: 10000pieces per month

Contact us! Start order! Chat Now!

Shipping: LCL/FCL by sea, by air, DHL, TNT, FEDEX;

Price term: EXW, FCA, FOB, CNF, CIF, DDP, AS CUSTOMERS REQUIRE;

Payment: TT, LC, VISA, MASTERCARD, WESTERN UNION.



Valve Connector - Anschlussverschraubung - Raccord ecrou libre - Manicotto con dado folle - Racor dos piezas

Article no.	Size	S	FCA Ningbo	W	Bag	Box
		〔mm〕		g	pcs	pcs
C1204001	15xG1/2	1.5	€5.87	69	10	50
C1204002	18xG1/2	1.5	€7.96	70	10	50
C1204003	18xG3/4	1.5	€8.33	72	10	50
C1204004	22xG1/2	1.5	€8.76	78	10	50
C1204005	22xG3/4	1.5	€9.00	80	10	50
C1204006	22x G1	1.5	€10.28	103	10	50
C1204007	28xG1	1.5	€11.28	156	4	40
C1204008	35xG11/4	1.5	€17.68	194	4	24
C1204009	42xG11/2	1.5	€25.88	234	4	20
C1204010	54xG2	1.5	€33.20	405	4	12



Our galvanized press fitting pipeline is used for heating supply, chilled water, compressed air and fire sprinkler systems.

Low cost of labor

Security of hygiene

Reliability of the joints

Resistance to corrosion

Easy and quick way of laying

Compatible of press fitting system

Hydro thermo sanitary applications

Press fitting system made by best material

Jordith long-term experience in stainless pipeline industry

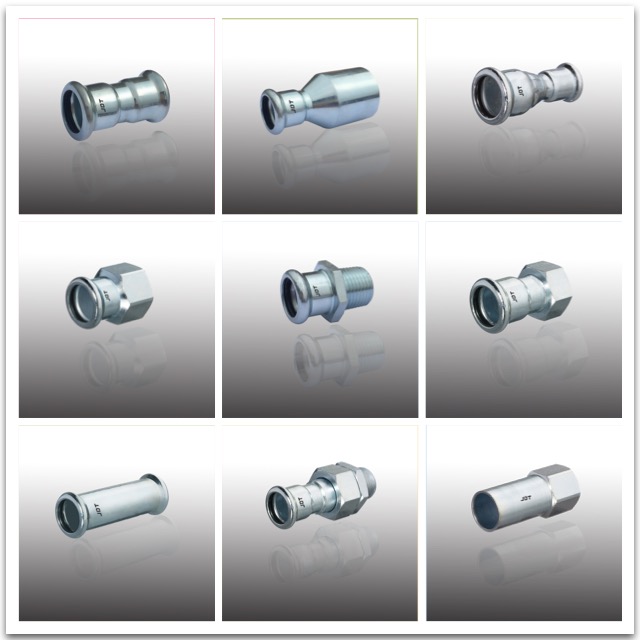

Other similar fittings:

We not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test,

vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

1.Tightness of joints, internal pressure

2 assemblies of one size

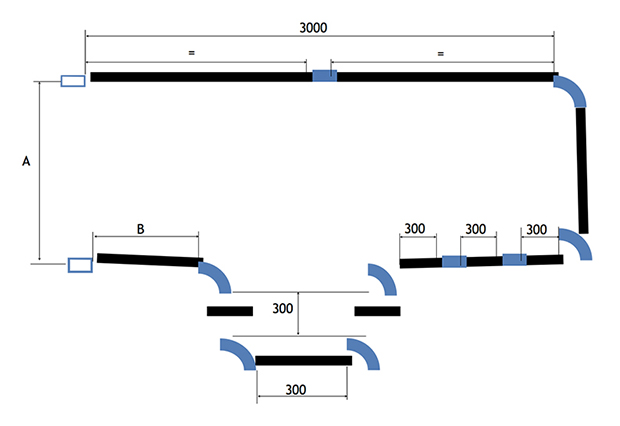

2. Temperature cycling test

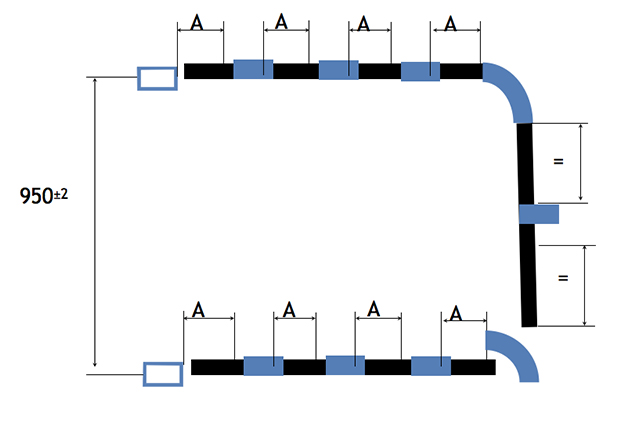

a. Sizes ≤63 outside diameter



For pipes with outside diameter ≤ 28 mm A is 555^±2 mm; For pipes with outside diameter > 28 mm A is 950^±2 mm; B is the length needed to bring the faces of the male thread couplers in line.

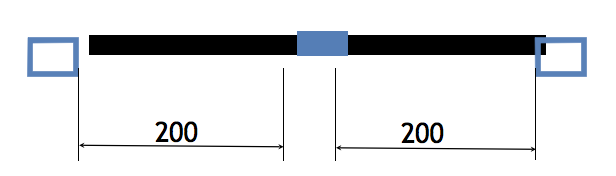

b.  Sizes > 63 mm outside diameter



A: 200 mm

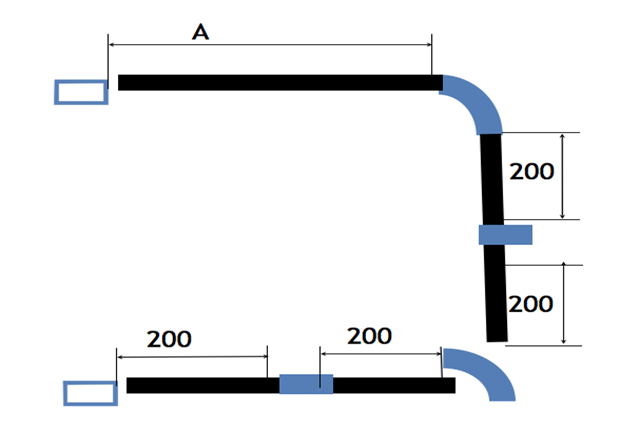

3. Bending cycling



A is the length needed to bring the faces of the male thread couplers in line

The press fittings with O-ring may be used for class III piping systems:

Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5;

Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil;

Fresh water: cooling water system, drainage water system.

Press system-propress fitting: press galvanized carbon steel: design (compression couplings, press type): press galvanized steel tubes are thin-walled precision tubes.

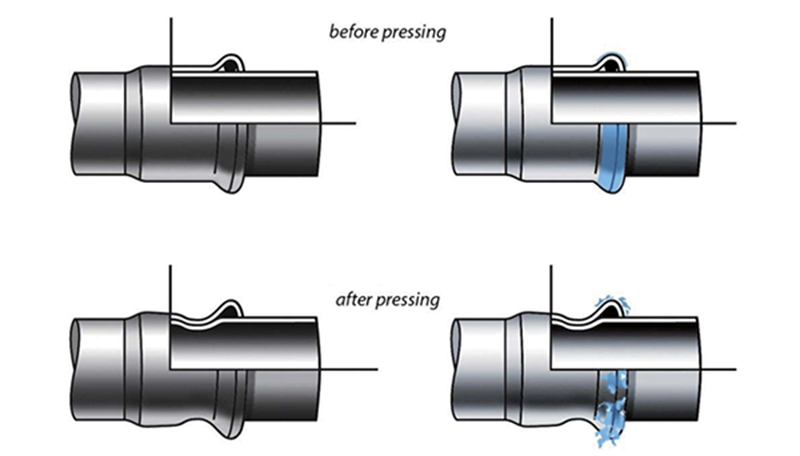

The press fitting end is annularly shaped as “U” type groove bead with O ring sealing inside. When assembling, the pipes inserts into the fittings, then pressed by professional press tools,

to make the joint inside the “U” type groove reducing to final hexagon, resulting strong connecting strength, meanwhile achieving the sealing function by the deformation of the O ring.



Press Galvanized Steel Tube

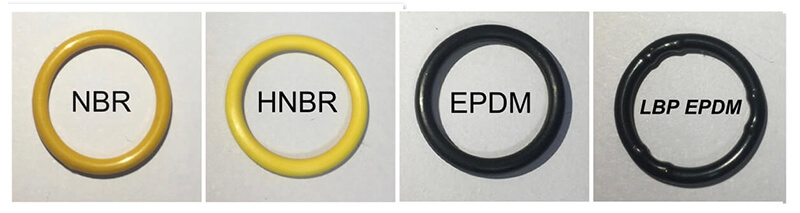

It depends on sealing material according to manufacturer’s recommendation.

• EPDM black: -40/135 (150peak)
• NBR yellow: -30/100 (125peak)
• Viton Green: 20/200 (230 peak)
•

We not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test, vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

The press fittings with O-ring may be used for class III piping systems: Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5; Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil; Fresh water: cooling water system, drainage water system.
