Carbon steel female tee|Heating supply|Plumbing system|Free sample

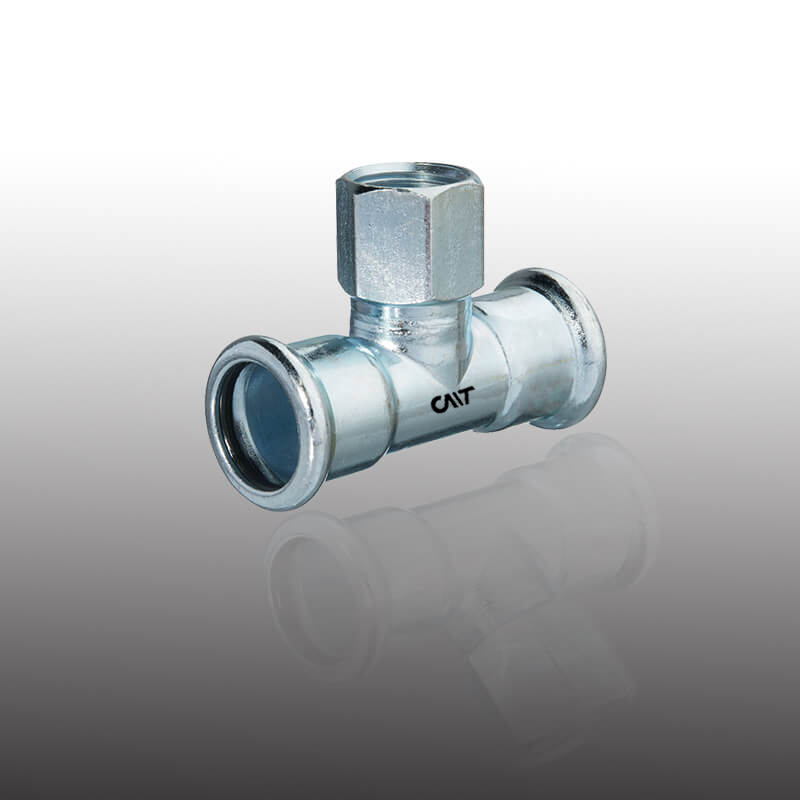

Galvanized Carbon Steel Press Fittings - T-piece with female thread

T-PIECE WITH FEMALE THREAD

Fob reference price: Get latest price from our service girl now!

FCA: EURO 3.30 - 20.33/pcs

Min. order: 200pcs TEES with female ends

Supply ability: 10000pieces per month

Contact us! Start order! Chat Now!

Shipping: LCL/FCL by sea, by air, DHL, TNT, FEDEX.

Price term: EXW, FCA, FOB, CNF, CIF.

Payment: TT, LC, VISA, MASTERCARD, WESTERN UNION.

Branch Tee Female outlet - T Stück mit Abgang IG - Té mixte avec filetage F - "T" con derivazione filetto F - Te hembra roscada

Article no.	Size	S	FCA Ningbo	W	Bag	Box
Article no.	Size	〔mm〕	FCA Ningbo	g	pcs	pcs
C1215001	15xRp1/2	1.5	€3.30	89	10	60
C1215002	18xRp1/2	1.5	€3.63	107	10	50
C1215003	22xRp1/2	1.5	€4.33	119	10	40
C1215004	22xRp3/4	1.5	€4.73	121	10	40
C1215005	28xRp1/2	1.5	€5.40	145	10	30
C1215006	28xRp3/4	1.5	€5.83	146	4	24
C1215007	28xRp1	1.5	€6.30	192	4	24
C1215008	35xRp1/2	1.5	€8.17	187	4	16
C1215009	35xRp11/4	1.5	€9.93	189	2	12
C1215010	42xRp11/4	1.5	€10.87	460	2	10
C1215011	54xRp11/2	1.5	€15.53	569	1	6
C1215012	54xRp2	1.5	€20.33	620	1	6

Our galvanized press fitting pipeline is used for heating supply, chilled water, compressed air and fire sprinkler systems.

press fitting advantage

Low cost of labor

Security of hygiene

Reliability of the joints

Resistance to corrosion

Easy and quick way of laying

Compatible of press fitting system

Hydro thermo sanitary applications

Press fitting system made by best material

Coweth long-term experience in stainless pipeline industry

press fitting quality control test dvgw w534

Jordith not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test,

vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

1.Tightness of joints, internal pressure

2 assemblies of one size

2. Temperature cycling test

a. Sizes ≤63 outside diameter

press fitting temperature recycle

For pipes with outside diameter ≤ 28 mm A is 555^±2 mm; For pipes with outside diameter > 28 mm A is 950^±2 mm; B is the length needed to bring the faces of the male thread couplers in line.

b. Sizes > 63 mm outside diameter

temperature cycling test bigger than 63 mm

A: 200 mm

3. Bending cycling

A is the length needed to bring the faces of the male thread couplers in line

The press fittings with O-ring may be used for class III piping systems:

Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5;

Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil;

Fresh water: cooling water system, drainage water system.

about jordith

jordith fitting team

press fitting factory choose press fitting product description

Jordith Press system-propress fitting: press galvanized carbon steel: design (compression couplings, press type): press galvanized steel tubes are thin-walled precision tubes.

The press fitting end is annularly shaped as “U” type groove bead with O ring sealing inside. When assembling, the pipes inserts into the fittings, then pressed by professional press tools,

to make the joint inside the “U” type groove reducing to final hexagon, resulting strong connecting strength, meanwhile achieving the sealing function by the deformation of the O ring.

press system characteristics

Press Galvanized Steel Tube

Press Galvanized Steel Tube
Nominal size DN	10	12	15	20	25	32	40	50	65	80	100
Outside Pipe Diameter(mm)	12	15	18	22	28	35	42	54	76.1	89	108
Pipe thickness(mm)	1.2	1.2	1.2	1.5	1.5	1.5	1.5	1.5	2.0	2.0	2.0
Max.Working Pressure (bar)	16	16	16	16	16	16	16	16	12.5	10	10

press fitting o ring temperature ranges

It depends on sealing material according to manufacturer’s recommendation.

EPDM black: -40/135 (150peak)
NBR yellow: -30/100 (125peak)
Viton Green: 20/200 (230 peak)

material of press tubes and fittings

Tubes	Galvanized and polypropylene coated unalloyed steel E195(1.0034) acc.to EN10305. Externally and complete galvanized versions E195(1.0034) and E190(1.0031) acc.to EN10305.
Fittings	Carbon steel, galvanized E195 (1.0034/RSt34-2) acc. EN10305.
O-rings	EPDM black, NBR Yellow, Viton Green and Viton Grey

We Jordith not only test every piece of fitting for air test, but also carry out all kinds of tests according to standard requirements as tightness test, vibration test, pressure pulsation test, burst pressure test, pull-out test, vacuum test and fire-endurance test.

The Jordith press fittings with O-ring may be used for class III piping systems: Inert gas: water seal effluent lines, scrubber effluent lines, main lines 2+5, distributions lines 5; Flammable fluids ( flash point ＞60℃)：Cargo oil lines, fuel oil lines, lubricating oil lines, hydraulic oil, thermal oil; Fresh water: cooling water system, drainage water system.

center heating supply pipeline

If you are interested in our products, please click on the following PDF file name to open the Ctrl+S or the right mouse button to save your equipment

Download: Female tee
